RA12H Parts with Honda Engine 2024 and newer
| Name | Summary | SKU | Price | Buy |
|---|---|---|---|---|
| A-01 | M6 Locknut | LMK040104 | $2.00 | |
| A-02 | M6 Lock Washer | DZK020104 | $2.00 | |
| A-03 | M6 Flat Washer | DZK010104 | $2.00 | |
| A-04 | M6 Button head Bolts | LSY050404 | $2.00 | |
| A-05 | Front Grill | 6490127 | $54.00 | |
| A-06 | Hood | 6490102 | $1,000.00 | |
| A-07 | Handle | CZJ040101 | $15.77 | |
| A-08 | Latch Cup | CZJ110103 | $8.00 | |
| A-09 | Latch Pin 4x32mm | XZK020214 | $6.54 | |
| A-10 | Rubber Hood Latch | CZJ110101 | $12.00 | |
| A-11 | Rubber Hood Latch Pivot Bracket | CZJ110102 | $4.00 | |
| A-12 | M8x16 Hex Head Bolt | LSW010501 | $2.00 | |
| A-13 | M8 Lock Washer | DZK020105 | $2.00 | |
| A-14 | M8 Flat Washer | DZK010105 | $2.00 | |
| A-15 | Rubber Grommet | XSJ170906 | $8.08 | |
| A-16 | Back Wall Panel | 6490103 | $96.00 | |
| A-17 | Hood Strut | QTH060201 | $31.15 | |
| A-18 | M10 Lock Nut | LMK040106 | $2.00 | |
| A-19 | M10 Lock Washer | DZK020106 | $2.00 | |
| A-20 | M10 Flat Washer | DZK010106 | $2.00 | |
| A-21 | M10x50 Hex Head Bolt | LSW010607 | $2.00 | |
| A-22 | Hydraulic Hard Pipe to Drive Motor | 6499705 | $74.00 | |
| A-23 | M6x16 Hex Head Bolt | LSW010402 | $2.00 | |
| A-24 | Drum Support Cover Plate | 6490311 | $12.00 | |
| A-25 | M8x30 Hex Head Bolt | LSW010504 | $2.00 | |
| A-26 | M8x35 Hex Head Bolt | LSW010505 | $2.00 | |
| A-27 | Drive Hard Pipe Outer Holding Bracket | 2120242 | $12.00 | |
| A-28 | Standoff Sleeve | 2120148 | $14.23 | |
| A-29 | Drive Hard Pipe Inner Holding Bracket | 2120243 | $22.00 | |
| A-30 | M12x40 Hex Head Bolt (Grade 12.9) | LSW010704 | $2.00 | |
| A-31 | M12 Conical Washer | DZK050207 | $2.00 | |
| A-32 | Front Drum | 6490301 | $4,432.00 | |
| A-33 | Front Frame | 6490101 | $2,770.00 | |
| A-34 | Exciter Hose Inner Holding Bracket | 2120150 | $23.46 | |
| A-35 | Exciter Hose Outer Holding Bracket | 2120149 | $40.00 | |
| A-36 | M8x30 Hex Head Bolt | LSW010504 | $2.00 | |
| A-37 | M8x35 Hex Head Bolt | LSW010505 | $2.00 | |
| A-38 | Hood Hinge | CZJ100204 | $32.00 | |
| A-39 | M8 Locknut | LMK040105 | $2.00 | |
| B-01 | M12x35 Socket Head Bolt | 2200136A | $4.00 | |
| B-02 | M12 Lock Washer | DZK020107 | $2.00 | |
| B-03 | M12 Flat Washer | DZK010107 | $2.00 | |
| B-04 | LED Working Light | FGJ181502 | $55.50 | |
| B-05 | Bumper Lifting Strut | QTH010501 | $22.00 | |
| B-06 | Front Bumper | 6490105 | $84.00 | |
| B-07 | M8x35 Hex Head Bolt | LSW010505 | $2.00 | |
| B-08 | M8 Lock Washer | DZK020105 | $2.00 | |
| B-09 | M8 Flat Washer | DZK010105 | $2.00 | |
| B-10 | Hydraulic Oil Filter with Mounting | YFJ010204 | $121.20 | |
| B-11 | Mounting Stud | 2 120648 | $10.00 | |
| B-12 | M10 Lock Washer | DZK020105 | $2.00 | |
| B-13 | M10 Flat Washer | DZK010105 | $2.00 | |
| B-14 | M10 Lock Nut | LMK040106 | $2.00 | |
| B-15 | Hydraulic Filter Bracket | 6490124 | $18.85 | |
| B-16 | Front Oil Cooler Bracket | 6490117 | $28.00 | |
| B-17 | M8 Lock Nut | LMK040105 | $2.00 | |
| B-18 | M8 Lock Washer | DZK020105 | $2.00 | |
| B-19 | M8 Flat Washer | DZK010105 | $2.00 | |
| B-20 | M8x20 Hex Head Bolt | LSW010502 | $2.00 | |
| B-21 | M8 Lock Washer | DZK020105 | $2.00 | |
| B-22 | M8 Flat Washer | DZK010105 | $2.00 | |
| B-23 | Hydraulic Oil Cooler | 6490501 | $540.80 | |
| B-24 | Rear Oil Cooler Bracket | 6490118 | $28.00 | |
| B-25 | Bushing | NZC170101 | $6.54 | |
| B-26 | M12x35 Socket Head Bolt | 2200136A | $4.00 | |
| B-27 | M12 Flat Washer | DZK020107 | $2.00 | |
| B-28 | Rubber Bumper | TZJ020106 | $18.00 | |
| B-29 | Oil Cooler Cowling – Lower | 6490119 | $16.00 | |
| B-30 | M8 Lock Nut | LMK040105 | $2.00 | |
| B-31 | M8 Lock Washer | DZK020105 | $2.00 | |
| B-32 | M8 Flat Washer | DZK010105 | $2.00 | |
| B-33 | M8x25 Hex Head Bolt | LSW010503 | $2.00 | |
| B-34 | Voltage Regulator | F DP150801 | $328.00 | |
| B-35 | Hood Stop Bracket | 6490121 | $6.00 | |
| B-36 | M6x20 | LSW010403 | $2.00 | |
| B-37 | M6 Lock Washer | DZK020104 | $2.00 | |
| B-38 | M6 Flat Washer | DZK010104 | $2.00 | |
| B-39 | M6x25 Hex Head Bolt | LSW010404 | $2.00 | |
| B-40 | O-ring (109×3.55mm) | MFJ010360 | $2.00 | |
| B-41 | Hydraulic Return Cover Plate | 6490120 | $62.00 | |
| B-42 | Wire Harness Mounting Bracket | 6490128 | $0.00 | |
| B-43 | Travel Control Cable Assembly | 2150106 | $104.00 | |
| B-44 | Honda GX630 Engine | $2,603.08 | ||
| B-45 | Hydraulic Oil Tank Inlet Filter and Cap | YFJ060102 | $52.00 | |
| B-46 | Hydraulic Tank Filling Tube | 2120138 | $50.00 | |
| B-47 | Hose Clamp Top Plate | 2120637 | $11.15 | |
| B-48 | Hose Clamp Top Molding | 2120633 | $18.00 | |
| B-49 | Hose Clamp Bottom Molding | 2120634 | $18.00 | |
| B-50 | Hose Clamp Bottom Plate | 2120638 | $12.69 | |
| B-51 | Fuel Pump Fitting | 6490405 | $16.00 | |
| B-52 | Fuel Pump Bracket | 6490122 | $25.00 | |
| B-53 | Hydraulic Oil Level Gauge | YFJ040301 | $28.00 | |
| B-54 | Electric Fuel Pump | $0.00 | ||
| B-55 | Hydraulic Tank Access Cover | TZJ010210 | $34.00 | |
| B-56 | O-ring (150×2.65mm) | MFJ010287 | $8.08 | |
| B-57 | Hydraulic Oil Suction Filter | YFJ070103 | $56.00 | |
| B-58 | M16x1.5 Hydraulic Tank Drain Plug | YJD070304 | $11.15 | |
| B-59 | Inner Front Scraper Bar Spring Plate | 6490123 | $12.69 | |
| B-60 | Water Bar End Cap | 6490803 | $8.08 | |
| B-61 | Spray Nozzle | 2121016 | $28.00 | |
| B-62 | Water Bar Inlet Connector | 2121017 | $18.85 | |
| B-63 | Water Bar | 6490116 | $36.00 | |
| B-64 | Water Bar Mount | YFJ100109 | $6.54 | |
| B-65 | M6x45 Socket Head Bolt | LSN010409 | $2.00 | |
| B-66 | Horn | JSD030101 | $23.46 | |
| B-67 | Hydraulic Valve Bracket | 6490104 | $78.00 | |
| B-68 | Exciter Valve Assembly | 6493001-00? | $657.31 | |
| B-69 | M8x45 Hex Head Bolt | LSW010507 | $2.00 | |
| B-70 | M8 Nut | LMK010105 | $2.00 | |
| B-71 | Inner Front Scraper Bar Arm – Left | 6490115 | $22.00 | |
| B-72 | Inner Front Scraper Bar Spring | THM010104 | $9.62 | |
| B-73 | M12x35 Socket Head Bolt | 2200136A | $4.00 | |
| B-74 | Inner Front Scraper Bar Mounting Plate 2 | 6490112 | $48.00 | |
| B-75 | Inner Front Scraper Bar | 6490111 | $80.40 | |
| B-76 | Inner Front Scraper Bar Mounting Plate 1 | 6490113 | $24.00 | |
| B-77 | Inner Front Scraper Bar Arm – Right | 6490114 | $22.00 | |
| B-78 | Outer Front Scraper Bar Arm – Left | 6490109A | $22.00 | |
| B-79 | Outer Front or Rear Scraper Bar Spring | THM010103 | $9.62 | |
| B-80 | Outer Front Scraper Bar Arm – Right | 6490110A | $22.00 | |
| B-81 | Outer Front Scraper Bar Mounting Plate 1 | 6490108 | $24.00 | |
| B-82 | Outer Front Scraper Bar | 6490106 | $80.40 | |
| B-83 | Outer Front Scraper Bar Mounting Plate 2 | 6490107 | $48.00 | |
| B-84 | Battery – Group 34 330CCA | DYK020114 | $232.80 | |
| B-85 | Battery Hold Down Plate | T ZJ030301 | $18.85 | |
| B-86 | J hook bolt | TZJ030101 | $9.62 | |
| B-87 | M6 Lock Nut | LMK040104 | $2.00 | |
| B-88 | M6 Lock Washer | DZK020104 | $2.00 | |
| B-89 | M6 Flat Washer | DZK010104 | $2.00 | |
| B-90 | Front Frame | 6490101 | $2,770.00 | |
| B-91 | M8x40 Hex Head Bolt | LSW010506 | $2.00 | |
| B-92 | Temperature Sensor | ZNK110105 | $76.00 | |
| C-01 | M12x65 Socket Head Bolt | LSN010710 | $2.00 | |
| C-02 | M12 Lock Washer | DZK020107 | $2.00 | |
| C-03 | M12 Flat Washer | DZK010107 | $2.00 | |
| C-04 | Hydraulic Drive Motor | YYJ100102 | $1,398.40 | |
| C-05 | Drive Side Drum Support | 6490302 | $384.20 | |
| C-06 | M16 Lock Nut | LMK040109 | $2.00 | |
| C-07 | M16 Conical Washer | DZK050209 | $2.00 | |
| C-08 | M10x35 Hex Head Bolt | LSW010604 | $2.00 | |
| C-09 | M10 Lock Washer | DZK020106 | $2.00 | |
| C-10 | M10 Flat Washer | DZK010106 | $2.00 | |
| C-11 | Drive Plate | 2120511 | $108.00 | |
| C-12 | Drive Side Bearing Hub | 2120515 | $255.00 | |
| C-13 | Shockmount | TZJ020161 | $91.50 | |
| C-14 | Drive Side Bearing Cup | 2120532 | $330.00 | |
| C-15 | O-Ring (180 x 3.55mm) | MFJ010385 | $8.08 | |
| C-16 | Front Drum | 6490301 | $2,880.80 | |
| C-17 | Exciter Bearing | WZC040203 | $177.00 | |
| C-18 | Exciter Shaft | 2120533A | $260.00 | |
| C-19 | Exciter Bearing | WZC040203 | $177.00 | |
| C-20 | O-Ring (180 x 3.55mm) | MFJ010385 | $8.08 | |
| C-21 | Exciter Side Bearing Hub | 2120531 | $477.00 | |
| C-22 | Exciter Shaft Side Coupling | TZJ040402 | $100.00 | |
| C-23 | Coupling – Center Section | TZJ040109 | $22.00 | |
| C-24 | Exciter Motor Side Coupling | TZJ040302 | $82.00 | |
| C-25 | Oil Seal | MFJ023701 | $16.00 | |
| C-26 | Drive Bearing | NZC010120 | $48.00 | |
| C-27 | External Snap Ring (95mm) | DQK010151 | $6.54 | |
| C-28 | Exciter Side Drive Bearing Cup | 212053 4 | $450.00 | |
| C-29 | O-ring (145 x 1.8mm) | MFJ010161 | $8.08 | |
| C-30 | Exciter Side End Cap | 2120536 | $134.00 | |
| C-31 | M10x30 Hex Head Bolt | LSW010603 | $2.00 | |
| C-32 | O-ring (87.5 x 1.8mm) | MFJ010160 | $8.08 | |
| C-33 | Exciter Side Support Plate | 2120537 | $122.00 | |
| C-34 | Exciter Hydraulic Motor | YYJ140504 | $793.50 | |
| C-35 | M10x30 Socket Head Bolt | LSN010604 | $2.00 | |
| C-36 | M10 Flat Washer | DZK010106 | $2.00 | |
| C-37 | Exciter Side Drum Support | 6490303 | $394.00 | |
| D-01 | M10x30 Socket Head Bolt | LSW010603 | $2.00 | |
| D-02 | M10 Lock Washer | DZK020105 | $2.00 | |
| D-03 | M10 Flat Washer | DZK010105 | $2.00 | |
| D-04 | Hydraulic Pump Assembly – Drive and Aux | YYJ040101 | $3,241.92 | |
| D-05 | Pump Lever Arm | TZJ050602 | $36.00 | |
| D-06 | Pump Side Coupling | TZJ040302 | $82.00 | |
| D-07 | Coupling – Center Section | TZJ040109 | $22.00 | |
| D-08 | Engine Side Coupling | TZJ040203 | $66.00 | |
| D-09 | Pump Adapter Mount | TZJ071202 | $139.50 | |
| D-10 | Outer Muffler Heat Shield | 6490402 | $0.00 | |
| D-11 | Muffler | 6490403 | $219.00 | |
| D-12 | M6x16 Hex Head Bolt | LSW010402 | $2.00 | |
| D-13 | M6 Lock Washer | DZK020104 | $2.00 | |
| D-14 | M6 Flat Washer | DZK010104 | $2.00 | |
| D-15 | Inner Muffler Heat Shield | 6490401 | $84.00 | |
| D-16 | Right Heat Shield Bracket | 2150123 | $18.00 | |
| D-17 | M8x20 Hex Head Bolt | LSW010502 | $2.00 | |
| D-18 | M8 Lock Washer | DZK020105 | $2.00 | |
| D-19 | M8 Flat Washer | DZK010105 | $2.00 | |
| D-20 | Wire Harness Bracket | 6490404 | $8.00 | |
| D-21 | Left Heat Shield Bracket | 2150124 | $18.00 | |
| D-22 | Honda GX630 Engine | FDJ011001 | $2,603.08 | |

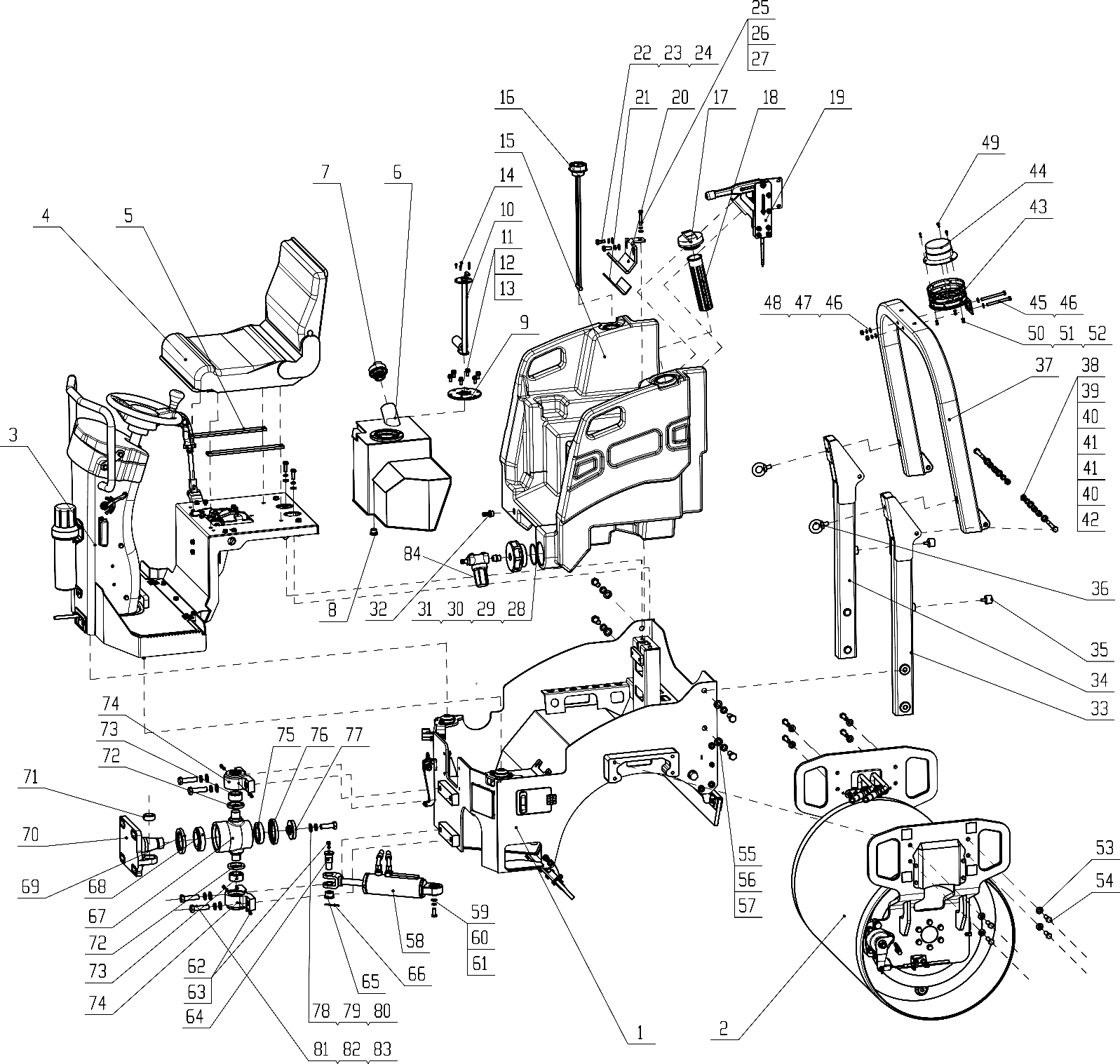

| E-01 | Rear Frame | $0.00 | ||
| E-02 | Rear Drum | $0.00 | ||
| E-03 | Operators Platform Frame | $0.00 | ||
| E-04 | Seat | TZJ180104 | $364.00 | |
| E-05 | Seat Rail | 2 120222 | $23.46 | |
| E-06 | Fuel Tank | 6490208 | $494.00 | |
| E-07 | Fuel Cap | TZJ010507 | $37.70 | |
| E-08 | Drain Plug – M45 | YJD070404 | $21.92 | |
| E-09 | Fuel Level Gauge Flange | TZJ010406 | $26.00 | |
| E-10 | Fuel Level Sensor | ZNK 370221 | $136.00 | |
| E-11 | M8x20 Hex Head Bolt | LSW010502 | $2.00 | |
| E-12 | M8 Lock Washer | DZK020104 | $2.00 | |
| E-13 | M8 Flat Washer | DZK010104 | $2.00 | |
| E-14 | M4x12 Hex Head Bolt | LSY010405 | $2.00 | |
| E-15 | Water Tank | 6490601 | $720.00 | |
| E-16 | Water Level Gauge | 6490801 | $96.00 | |
| E-17 | Water Tank Cap | 6490602 | $16.00 | |
| E-18 | Water Tank Inlet Filter | 6490603 | $23.46 | |
| E-19 | Parking Brake Lever | $227.20 | ||
| E-20 | Water Tank Hold Down Bracket | 6490205 | $26.00 | |
| E-21 | Rubber Pad | 6490206 | $9.62 | |
| E-22 | M10x25 Hex Head Bolt | LSW010602 | $2.00 | |
| E-23 | M10 Lock Washer | DZK020106 | $2.00 | |
| E-24 | M10 Flat Washer | DZK010106 | $2.00 | |
| E-25 | M8x50 Hex Head Bolts | LSW010508 | $2.00 | |
| E-26 | M8 Lock Washer | DZK020105 | $2.00 | |
| E-27 | M8 Flat Washer | DZK010105 | $2.00 | |
| E-28 | O-ring (92.5 x 3.55mm) | MFJ010354 | $11.15 | |
| E-29 | Lower Water Tank Cap to Filter | TZJ010601 | $11.15 | |
| E-30 | Straight Hose Fitting | SGJ020304 | $8.08 | |
| E-31 | Water Filter Assembly | 6490802 | $88.00 | |
| E-32 | Tank Drain Fitting | SGJ020118 | $8.08 | |
| E-33 | ROPS Lower Left Section | 6490211 | $96.00 | |
| E-34 | ROPS Lower Right Section | 6490212 | $96.00 | |
| E-35 | Rubber Bumper | TZJ020106 | $18.00 | |
| E-36 | Eye Bolt M12x22 | LST040103 | $15.77 | |
| E-37 | ROPS Upper Section | 6490213 | $432.00 | |
| E-38 | M12 Nut | LMK040107 | $2.00 | |
| E-39 | M12 Lock Washer | DZK020107 | $2.00 | |
| E-40 | M12 Flat Washer | DZK010107 | $2.00 | |
| E-41 | Nylon Washer | 2120215 | $8.08 | |
| E-42 | M12x90 Hex Head Bolt | LSW010712 | $9.62 | |
| E-43 | Beacon Bracket | 6490214 | $22.00 | |
| E-44 | LED Beacon | JSD050103 | $104.00 | |
| E-45 | M8x90 Hex Head Bolt | LSW010514 | $9.62 | |
| E-46 | M8 Lock Washer | DZK020105 | $2.00 | |
| E-47 | M8 Flat Washer | DZK010105 | $2.00 | |
| E-48 | M8 Lock Nut | LMK040105 | $2.00 | |
| E-49 | M4x12 Pan Head Bolt | LSY010405 | $2.00 | |
| E-50 | M4 Flat Washer | DZK010102 | $2.00 | |
| E-51 | M4 Lock washer | DZK020102 | $2.00 | |
| E-52 | M4 Lock Nut | LMK040102 | $2.00 | |
| E-53 | M16 Conical Washer | DZK050209 | $2.00 | |
| E-54 | M12x40 Hex Head Bolt (Grade 12.9) | LSW120603 | $2.00 | |
| E-55 | M16 Flat Washer | DZK010109 | $2.00 | |
| E-56 | M16 Lock Washer | DZK020109 | $2.00 | |
| E-57 | M16x35 Hex Head Bolt | LSW010902 | $2.00 | |
| E-58 | Hydraulic Steering Cylinder | YYJ510301 | $351.25 | |
| E-59 | Locking Sleeve | 2120306 | $10.00 | |
| E-60 | M10 Lock Washer | DZK010106 | $2.00 | |
| E-61 | M10x25 Hex Head Bolt | LSW010602 | $2.00 | |
| E-62 | M6 Grease Zirk | ZHL030101 | $5.00 | |
| E-63 | Grease Zirk Cap | ZHL050101 | $2.85 | |
| E-64 | Hydraulic Cylinder Clevis Pin | 2120304 | $16.00 | |
| E-65 | Clevis Pin Bushing | 2120305 | $10.00 | |
| E-66 | Cotter Pin | XZK030511 | $2.00 | |
| E-67 | Articulating Joint Center Body | 2120301 | $237.00 | |
| E-68 | Tapered Roller Bearing | NZC050110 | $28.00 | |
| E-69 | Bearing Seal | MFJ022219 | $10.00 | |
| E-70 | Articulating Joint Oscillation Pin | 2120302 | $226.50 | |
| E-71 | Spherical Bearing | NZC100402 | $14.00 | |
| E-72 | Bearing Seal | MFJ021524 | $6.00 | |
| E-73 | Spherical Bearing | NZC100101 | $28.00 | |
| E-74 | Bearing Pillow Block | 2120312A | $117.00 | |
| E-75 | Tapered Roller Bearing | NZC050207 | $16.00 | |
| E-76 | Bearing Seal | MFJ022219 | $10.00 | |
| E-77 | Locking Sleeve | 2120306 | $10.00 | |
| E-78 | M16 Flat Washer | DZK010109 | $2.00 | |
| E-79 | M16 Lock Washer | DZK020109 | $2.00 | |
| E-80 | M16x50 Hex Head Bolt | LSW010905 | $8.08 | |
| E-81 | M16x55 Hex Head Bolt | LSW010906 | $8.08 | |
| E-82 | M16 Lock Washer | DZK010109 | $2.00 | |
| E-83 | M16 Flat Washer | DZK020109 | $2.00 | |
| F-01 | Rear Frame | 6490201 | $2,190.00 | |
| F-02 | Rear Lower Hose Guide Bracket | 6490217 | $68.00 | |
| F-03 | Water Filter Door | 6490216A | $12.00 | |
| F-04 | Door Latch | CZJ081201 | $20.00 | |
| F-05 | Shockmount | TZJ020701 | $18.00 | |
| F-06 | Water Pump | SBK040103 | $280.00 | |
| F-07 | Barbed Fitting | SGJ020118 | $8.08 | |
| F-08 | Water Drain Mounting Plate | 2121115 | $6.54 | |
| F-09 | Water Drain Valve | SGJ010902 | $15.77 | |
| F-10 | Articulation Locking Arm | 6490209 | $16.00 | |
| F-11 | M12 Butterfly Washer | DZK050109 | $2.00 | |
| F-12 | M12 Flat Washer | DZK010107 | $2.00 | |
| F-13 | M12x50 Hex Head Bolt | LSW010706 | $2.00 | |
| F-14 | Inner Rear Scraper Bar Mounting Plate 2 | 6490107 | $48.00 | |
| F-15 | Inner Rear Scraper Bar | 6490106 | $80.40 | |
| F-16 | Inner Rear Scraper Bar Mounting Plate 1 | 6490108 | $24.00 | |
| F-17 | Outer Rear Scraper Bar Arm – Right | 6490109 | $22.00 | |
| F-18 | Outer Rear Scraper Bar Arm – Left | 6490110 | $22.00 | |
| F-19 | Inner Rear Scraper Bar Arm – Right | 6490115 | $22.00 | |
| F-20 | Inner Rear Scraper Bar Arm – Left | 6490114 | $22.00 | |
| F-21 | Inner Rear Scraper Bar Spring | THM010101 | $9.62 | |
| F-22 | M8 Flat Washer | DZK010105 | $2.00 | |
| F-23 | M8x40 Hex Head Bolt | LSW010506 | $2.00 | |
| F-24 | M12x35 Socket Head Bolt | 2200136A | $2.00 | |
| F-25 | M12 Lock Washer | DZK020107 | $2.00 | |
| F-26 | M8 Lock Nut | LMK040105 | $2.00 | |
| F-27 | M8x45 Hex Head Bolt | LSW010507 | $2.00 | |
| F-28 | M8 Flat Washer | DZK010105 | $2.00 | |
| F-29 | M8 Lock Nut | LMK040105 | $2.00 | |
| F-30 | M8 Lock Washer | DZK020105 | $2.00 | |
| F-31 | M8 Flat Washer | DZK010105 | $2.00 | |
| F-32 | Water Bar | 6490116 | $36.00 | |
| F-33 | Spray Nozzle | 2121016 | $28.00 | |
| F-34 | Water Bar End Cap | 6490803 | $8.08 | |
| F-35 | Water Bar Inlet Connector | 2121017 | $18.85 | |
| F-36 | Rubber Bumper | TZJ020106 | $18.00 | |
| F-37 | M8 Flat Washer | DZK010105 | $2.00 | |
| F-38 | M8 Lock Washer | DZK020105 | $2.00 | |
| F-39 | M8 Lock Nut | LMK040105 | $2.00 | |
| F-40 | Bushing | NZC170101 | $6.54 | |
| F-41 | Rear Bumper | 6490207 | $56.00 | |
| F-42 | Back Up Alarm | JSD010501 | $24.00 | |
| F-43 | LED Working Light | FGJ181502 | $55.50 | |
| F-44 | Bumper Lifting Strut | QTH010501 | $22.00 | |
| F-45 | M8x16 Hex Head Bolt | LSW010501 | $2.00 | |
| F-46 | M8 Flat Washer | DZK010105 | $2.00 | |
| F-47 | M8 Spring Washer | DZK020105 | $2.00 | |
| F-48 | Outer Front or Rear Scraper Bar Spring | THM010103 | $9.62 | |
| F-49 | M8 Flat Washer | DZK010105 | $2.00 | |
| F-50 | M8x35 Hex Head Bolt | LSW010505 | $2.00 | |
| F-51 | Inner Rear Scraper Bar Spring Plate | 6490123 | $12.69 | |
| F-52 | M12 Lock Nut | LMK040107 | $2.00 | |
| F-53 | M12 Lock Washer | DZK020105 | $2.00 | |
| F-54 | Water Bar Mount | YFJ100109 | $6.54 | |
| F-55 | M6x45 Socket Head Bolt | LSN010409 | $2.00 | |
| G-01 | Operators Platform Frame | 6490202 | $924.00 | |
| G-02 | Travel Control Lever Assembly | See Exploded View | $0.00 | |
| G-03 | Steering Column Cover | TZJ170401 | $136.51 | |
| G-04 | Operators Manual Holder | ZHL210101 | $38.00 | |
| G-05 | Steering Valve | YYJ150101 | $451.10 | |
| G-06 | Steering Shaft | TZJ170101 | $80.00 | |
| G-07 | Clamp | 2120267 | $6.00 | |
| G-08 | Steering Wheel | TZJ170501 | $124.00 | |
| G-08 | Horn button | TZJ170503 | $10.00 | |
| G-09 | Dash | $0.00 | ||
| G-10 | Rear Floor Plate | 6490203 | $138.00 | |
| G-11 | Floor Plate Hinge | CZJ100203 | $8.00 | |
| G-12 | Floor Plate | 6490204 | $64.00 | |
| G-13 | Floor Plate Trim | 6490218 | $16.00 | |
| G-14 | Handle | CZJ040101 | $15.77 | |
| G-15 | Relay Mounting Bracket | 6490219 | $12.00 | |
| G-16 | 12V Relay | DQJ220101 | $12.00 | |
| G-17 | Shockmount | TZJ020701 | $18.00 | |
| G-18 | Shockmount Mounting Plate | 6490215 | $36.00 | |
| G-19 | Neutral Locating Plate | 2120254 | $16.00 | |
| G-20 | Neutral Switch Activation Plate | 2120251 | $16.00 | |
| G-21 | Neutral Switch | 2331004 | $40.00 | |
| G-22 | Cable Guide Plate | 2120265 | $30.00 | |
| G-23 | Fuse Box | DQJ310102 | $42.00 | |
| G-24 | Choke Lever | 6499703 | $93.60 | |
| G-25 | Throttle Lever | 6499704 | $93.60 | |
| G-26 | Emergency Stop Button | CKD030401 | $30.00 | |
| G-27 | Key Switch | CKD070102 | $216.20 | |
| G-28 | Electric Water Valve | SGJ060101 | $43.50 | |
| G-29 | Water Valve Mounting Bracket | 2 120248A? | $10.00 | |
| G-30 | 90 Degree Hose Fitting | SGJ022202 | $8.00 | |
| G-31 | Straight Water Fitting | SGJ020804 | $8.00 | |
| G-32 | Barbed Fitting | SGJ020118 | $8.08 | |
| G-33 | Straight Hose Fitting | SGJ020304 | $8.08 | |
| G-34 | M8 Flat Washer | DZK010105 | $2.00 | |
| G-35 | M8 Lock Washer | DZK020105 | $2.00 | |
| G-36 | M8x20 Hex Head Bolt | LSW010502 | $2.00 | |
| G-37 | M10 Flat Washer | DZK010106 | $2.00 | |
| G-38 | M10 Lock Washer | DZK020106 | $2.00 | |
| G-39 | M10 Lock Nut | LMK040106 | $2.00 | |
| G-40 | M10x60 Hex Head Bolt | LSW010609 | $2.00 | |
| G-41 | M10 Flat Washer | DZK010106 | $2.00 | |
| G-42 | M8x25 Hex Head Bolt | LSW010503 | $2.00 | |
| G-43 | M8 Lock Washer | DZK020105 | $2.00 | |
| G-44 | M8 Flat Washer | DZK010105 | $2.00 | |
| G-45 | M8x25 Hex Head Bolt | LSW010503 | $2.00 | |
| G-46 | M8 Lock Washer | DZK020105 | $2.00 | |
| G-47 | M8 Flat Washer | DZK010105 | $2.00 | |
| G-48 | M5x14 Pan Head Bolt | LSY010505 | $2.00 | |
| G-49 | M5 Flat Washer | DZK010103 | $2.00 | |
| G-50 | M5 Lock Washer | DZK020103 | $2.00 | |
| G-51 | M5 Lock Nut | LMK040103 | $2.00 | |
| G-52 | M6x20 Hex Head Bolt | LSW010403 | $2.00 | |
| G-53 | M6 Lock Washer | DZK020104 | $2.00 | |
| G-54 | M6 Flat Washer | DZK010104 | $2.00 | |
| G-55 | M5x35 Hex Head Bolt | LSW010307 | $2.00 | |
| G-56 | M5 Lock Nut | LMK040103 | $2.00 | |
| G-57 | M5 Lock Washer | DZK020103 | $2.00 | |
| G-58 | M5 Flat Washer | DZK010103 | $2.00 | |
| G-59 | M4x14 Pan Head Bolt | LSY010406 | $2.00 | |
| G-60 | M4 Lock Nut | LMK040102 | $2.00 | |
| G-61 | M4 Lock Washer | DZK020102 | $2.00 | |
| G-62 | M4 Flat Washer | DZK010102 | $2.00 | |
| G-63 | M8x20 Hex Head Bolt | LSW010502 | $2.00 | |
| G-64 | M8 Lock Washer | DZK020105 | $2.00 | |
| G-65 | M8 Flat Washer | DZK010105 | $2.00 | |
| G-66 | M8 Flat Washer | DZK010105 | $2.00 | |
| G-67 | M8 Lock Washer | DZK020105 | $2.00 | |
| G-68 | M8x20 Hex Head Bolt | LSW010502 | $2.00 | |
| G-69 | M10x30 Hex Head Bolt | LSW010603 | $2.00 | |
| G-70 | M10 Lock Washer | DZK020106 | $2.00 | |
| G-71 | M10 Flat Washer | DZK010106 | $2.00 | |
| H-01 | Rear Drum | 6490304A? | $2,940.00 | |
| H-02 | O-ring (122 x 2.65mm) | MFJ010278 | $8.08 | |
| H-03 | Cover Plate | 6490310A? | $54.00 | |
| H-04 | M10 Flat Washer | DZK010106 | $2.00 | |
| H-05 | M10 Lock Washer | DZK020106 | $2.00 | |
| H-06 | M10x25 Hex Head Bolt | LSW010602 | $2.00 | |
| H-07 | Shockmount | TZJ020161 | $91.51 | |
| H-08 | Drain Plug – M45 | YJD070404 | $21.92 | |
| H-09 | M10x25 (Grade 12.9) Hex Head Bolt | LSW120302 | $2.00 | |
| H-10 | M10 Conical Washer | DZK050206 | $2.00 | |
| H-11 | M8x25 Hex Head Bolt | LSW010503 | $2.00 | |
| H-12 | M8 Lock Washer | DZK020105 | $2.00 | |
| H-13 | M8 Flat Washer | DZK010105 | $2.00 | |
| H-14 | M16 Conical Washer | DZK050209 | $2.00 | |
| H-15 | M16 Lock Nut | LMK040109 | $2.00 | |
| H-16 | Bearing Cover | 6490308 | $34.00 | |
| H-17 | Brake Disc | 6490309B | $134.00 | |
| H-18 | Bearing Cup | 6490307 | $214.00 | |
| H-19 | Drum Bearing | NZC010313 | $24.00 | |
| H-20 | Bearing Seal | MFJ022118 | $12.00 | |
| H-21 | Drive Bearing Hub | 6490306A | $180.00 | |
| H-22 | Brake Side Rear Drum Support | 6490305A | $426.00 | |
| H-23 | Drum Support Cover Plate | 6490311 | $12.00 | |
| H-24 | M6 Flat Washer | DZK010104 | $2.00 | |
| H-25 | M6 Lock Washer | DZK020104 | $2.00 | |
| H-26 | M6x16 Hex Head Bolt | LSW010402 | $5.00 | |
| H-27 | Wire Harness Clip | XSJ170723 | $6.54 | |
| H-28 | Brake Cable Bracket | 6490322 | $8.00 | |
| H-29 | M8 Flat Washer | DZK010105 | $2.00 | |
| H-30 | M8 Lock Washer | DZK020105 | $2.00 | |
| H-31 | M8x25 Hex Head Bolt | LSW010503 | $2.00 | |
| H-32 | Brake Caliper | 6499702 | $548.00 | |
| H-33 | Return Spring | THM050201 | $11.15 | |
| H-34 | M8x50 Hex Head Bolt | LSW010508 | $2.00 | |
| H-35 | Parking Brake Cable Assembly | 6490325 | $94.00 | |
| H-36 | M16x40 Hex Head Bolt | LSW010903 | $9.62 | |
| H-37 | Drive Side Bearing Hub | 2120515 | $255.00 | |
| H-38 | Drive Plate | 2120511 | $108.00 | |
| H-39 | M16 Conical Washer | DZK050209 | $2.00 | |
| H-40 | M16 Lock Nut | LMK040109 | $2.00 | |
| H-41 | M10 Conical Washer | DZK050206 | $2.00 | |
| H-42 | M10x35 (Grade 12.9) Hex Head Bolt | LSW120305 | $2.00 | |
| H-43 | M10 Flat Washer | DZK010106 | $2.00 | |
| H-44 | Drive Hard Pipe Inner Holding Bracket | 2120243 | $22.00 | |
| H-45 | Standoff Sleeve | 2120148 | $14.23 | |
| H-46 | Hydraulic Drive Motor | YYJ100102 | $1,398.40 | |
| H-47 | Hydraulic Hard Pipe to Drive Motor – Rear | 6499707 | $82.00 | |
| H-48 | Hydraulic Hard Pipe to Drive Motor – Front | 6499706 | $82.00 | |
| H-49 | Drive Hard Pipe Outer Holding Bracket | 2120243 | $22.00 | |
| H-50 | M8 Flat Washer | DZK010105 | $2.00 | |
| H-51 | M8 Lock Washer | DZK020105 | $2.00 | |
| H-52 | M8x35 Hex Head Bolt | LSW010505 | $2.00 | |
| H-53 | M8 Flat Washer | DZK010105 | $2.00 | |
| H-54 | M8 Lock Washer | DZK020105 | $2.00 | |
| H-55 | M8x30 Hex Head Bolt | LSW010504 | $2.00 | |
| H-56 | M6 Flat Washer | DZK010104 | $2.00 | |
| H-57 | M6 Lock Washer | DZK020104 | $2.00 | |
| H-58 | M6x16 Hex Head Bolt | LSW010402 | $2.00 | |
| H-59 | M12 Lock Washer | DZK020107 | $2.00 | |
| H-60 | M12x60 Socket Head Bolt | LSN010709 | $2.00 | |
| H-61 | M10x35 (Grade 12.9) Hex Head Bolt | LSW120304 | $2.00 | |
| H-62 | M10 Conical Washer | DZK050206 | $2.00 | |
| I-01 | Center Mounting Plate | 2120205D | $40.00 | |
| I-02 | Inner Shaft Mounting Sleeve | 2120257 | $26.00 | |
| I-03 | Bushing | NZC140607 | $9.62 | |
| I-04 | Reverse Sensor | DQJ070103 | $66.00 | |
| I-05 | M12x1.5 Nut | LMK020503 | $6.54 | |
| I-06 | Nylon Washer | 2120209 | $6.54 | |
| I-07 | Rotating Tube / Travel Cable Connecting Bracket | 2120219B | $66.00 | |
| I-08 | M8 Cap Screw | LSN010605 | $5.62 | |
| I-09 | Internal Shaft | 2120256 | $22.00 | |
| I-10 | Short External Tube | NZC140607 | $9.62 | |
| I-11 | Neutral Detent Cam | 2120253 | $52.00 | |
| I-12 | Neutral Detent Spring | THM191101 | $8.08 | |
| I-13 | M8 Flat Washer | DZK010105 | $2.00 | |
| I-14 | M8 Lock Washer | DZK020105 | $2.00 | |
| I-15 | M8 Lock Nut | LMK040105 | $2.00 | |
| I-16 | M8x50 Socket Head Bolt | LSN010509 | $2.00 | |
| I-17 | Outer Shaft Mounting Sleeve | 2120255 | $48.00 | |
| I-18 | Short External Tube | NZC140607 | $4.00 | |
| I-19 | Pivot Knuckle | 2200413A | $60.00 | |
| I-20 | M10x25 Socket Head Bolt | LSN010603 | $2.00 | |
| I-21 | Travel Lever Handle Assembly | 2129722 | $286.00 | |
| I-22 | M14x1.5 Thin Nut | LMK020504 | $6.85 | |
| I-23 | Lever Arm | 2120252 | $54.00 | |
| I-24 | Retaining Clip | DQK010302 | $6.54 | |
| I-25 | Internal Shaft Pin | 2120258 | $8.08 | |
| I-26 | Pivot Pin | 2120259 | $8.00 | |
| I-27 | Cable Clamp | 3070206 | $6.85 | |
| I-28 | Travel Control Cable Assembly | 2150106 | $104.00 | |
| I-29 | Clamp Block | 2120627 | $10.00 | |
| J-01 | Cover | TZJ170301 | $72.69 | |
| J-02 | Dash Housing | TZJ170201 | $180.00 | |
| J-03 | Instrument Cluster | ZNK060305 | $915.00 | |
| J-04 | Instrument Cluster Mounting Plate | 2200453 | $14.00 | |
| J-05 | Light Switch | CKD010102 | $24.00 | |
| J-06 | Steering Shaft Collar | 2200454 | $12.69 | |
| J-07 | Hinge Plate | 2200451 | $9.62 | |
| J-08 | Bushing | 2200450 | $6.54 | |
| J-09 | M8x20 Hex Head Bolt | LSW010502 | $2.00 |
