RT16

The RT16 Trench Roller is a robust compaction solution engineered for confined and challenging job sites. With its remote-controlled operation and expandable padfoot drums, it delivers exceptional performance in cohesive soils like clay.

Key Features:

  • Remote-Controlled Operation
    Utilizes a full-feature radio frequency remote, allowing operators to control the machine from a safe distance, enhancing safety and convenience.
  • Expandable Padfoot Drums
    Designed for maximum compaction force across various soil types. The drum width can be configured for both 24-inch and 36-inch trench widths, making it versatile for common trenching applications.
  • Full Steel Hood
    Features a rugged, all-steel hood that offers superior durability and impact resistance compared to the plastic hoods used by most competitors.
  • Tip-Over Engine Shutoff Sensor
    Automatically shuts down the engine in the event of a tip-over to prevent damage. The machine cannot be restarted until the sensor is manually reset, protecting both the engine and the operator.

The RT16 Trench Roller combines durability, advanced technology, and user-focused safety features, making it an ideal choice for contractors needing efficient, heavy-duty compaction in tight spaces.

Please Scroll Down To See Technical Specs

Description

Performance Data
Operating Weight 4035 lb
Vibration Frequency 2520 vpm
Centrifugal Force 15,300 lbf
Travel Speed with Vibration 0.8 – 1.5 mph
Gradeability Maximum 50%
Drum Thickness .4”
Remote Radio
Engine
Engine Manufacturer Yanmar
Engine Model 3TNV80F – Diesel
Cooling liquid -cooled
Number of Cylinders 3
Output Power 20 HP
Operating Speed 2400 rpm
Fuel Tank Capacity 8 gal

Parts and Support

Downloads

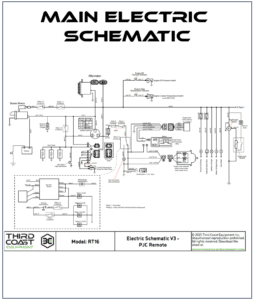

Electric Schematic for Machines With Automatic Glow Plug Timer



Electric Schematic for Machines With Manual Glow Plug Timer





Wire Harness Drawings

Service
