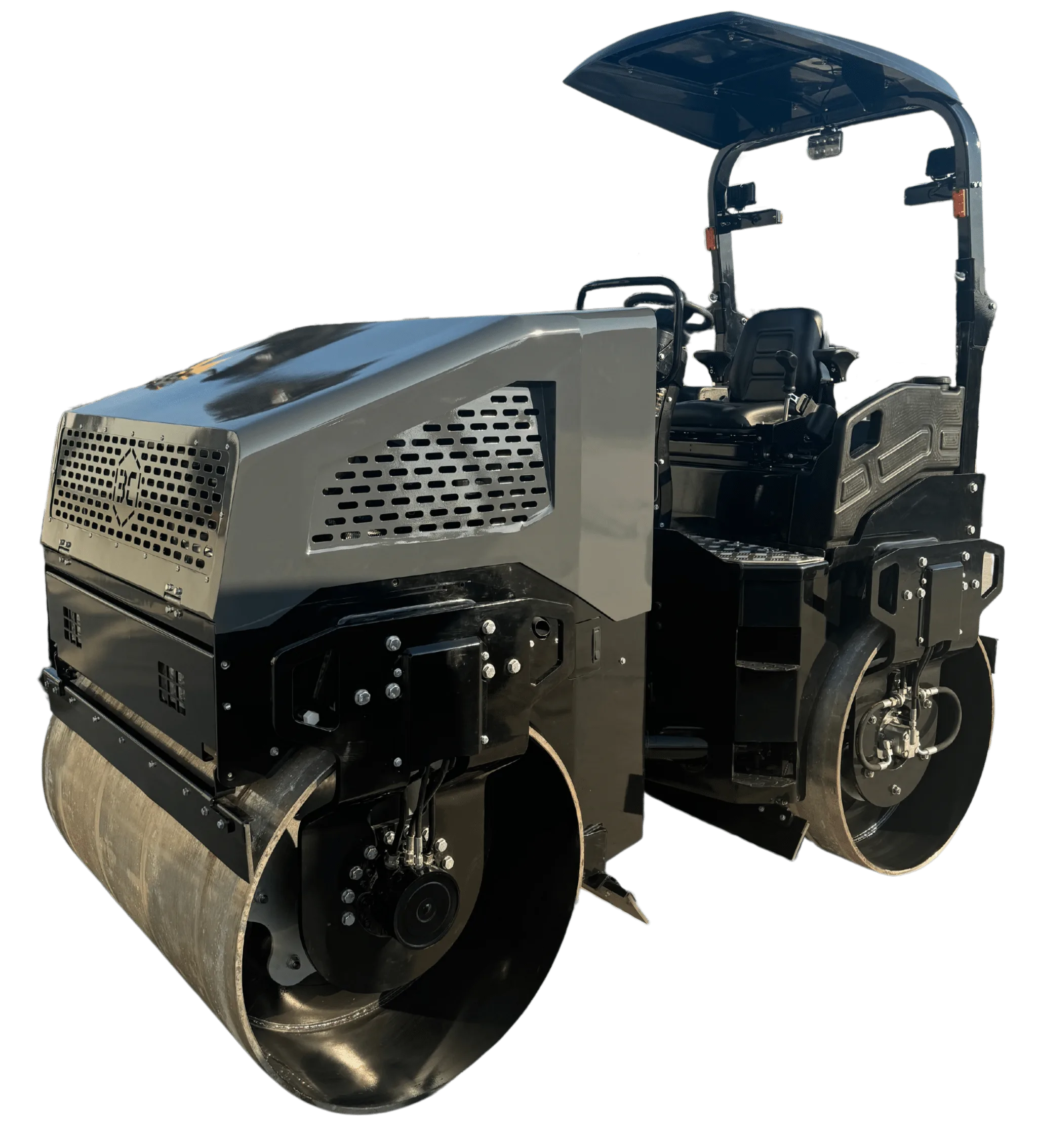

Description
| Weight & Dimensions | |
| Operating Weight | 9713 lb |
| Overall Width | 59.8 in |
| Overall Length | 110.2 in |
| Overall Height | 114.2 in |
| Curb Clearance (Right) | 28.7 in |
| Curb Clearance (Left) | 28.7 in |
| Turning Radius (Outer) | 196.9 in |
| Performance Data | |
| Vibration Frequency | 3600 vpm |
| Vibration Amplitude | 0.02 in |
| Centrifugal Force High | 10,116 lbf |
| Centrifugal Force Low | 8205 lbf |
| Travel Speed with Vibration | 7.5 mph |
| Gradeability Maximum | 40% |
| Water Tank Capacity | 92.1 gal |
| Drum Diameter | 35.4 in |
| Drum Width | 55.1 in |
| Drum Thickness | 0.79 in |
| Engine | |
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV88C |
| Cooling | Liquid |
| Number of Cylinders | 4 |
| Output Power | 46 hp |
| Operating Speed | 2900 rpm |
| Fuel Tank Capacity | 19.2 gal |
