Sale!

RA12

Standard Features:

  • Folding ROPs
  • LED beacon
  • LED working lights
  • Horn
  • Back-up alarm
  • Lockable dash cover
  • Pressurized water system
  • Cleanable stainless steel water filter

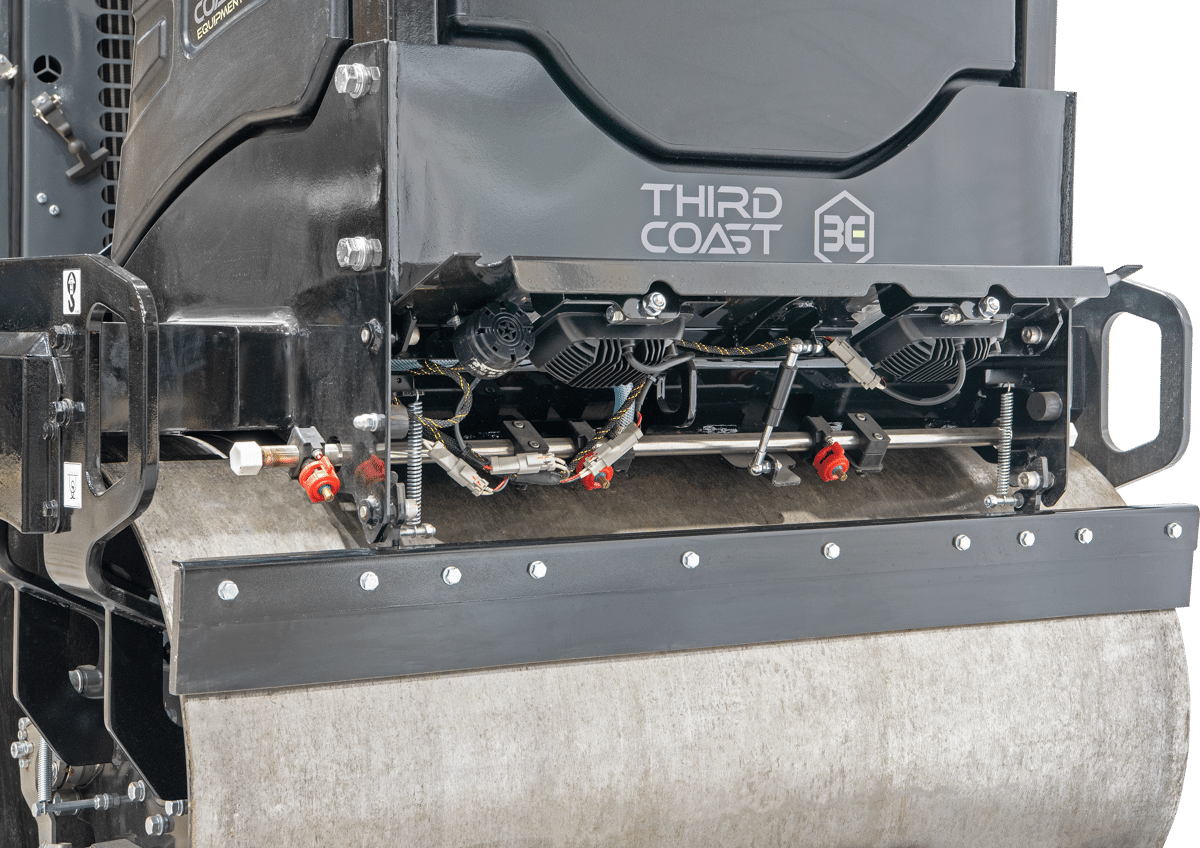

  • Stainless steel water bars with adjustable brass spray nozzles
  • Spring loaded, self-adjusting, and flip up scraper bars
  • Honda GX630 V-twin engine
  • Hydraulic oil cooler
  • Sliding and weight adjustable seat

Please Scroll Down To See Technical Specs

Original price was: $25,800.00.Current price is: $22,995.00.

Description



Weight & Dimensions
Operating Weight 2750 lb
Overall Width 39.4 in
Overall Length 79.1 in
Overall Height 90.5 in
Curb Clearance (Right) 14 in
Curb Clearance (Left) 15 in
Turning Radius (Outer) 126 in
Performance Data
Vibration Frequency 3900 vpm
Vibration Aplitude 0.02 in
Centrifugal Force 3825 lbf
Travel Speed with Vibration 5 mph
Gradeability Maximum 30%
Water Tank Capacity 31.7 gal
Drum Diameter 24.4 in
Drum Width 35.4 in
Drum Thickness 0.4 in
Engine
Engine Manufacturer Honda
Engine Model GX630
Cooling Air-cooled
Number of Cylinders 2
Output Power 20 HP
Operating Speed 3600 rpm
Fuel Tank Capacity 4.5 gal



Spare Parts

RA12H with HONDA engine





RA12V with VANGUARD engine

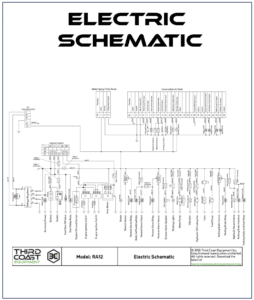

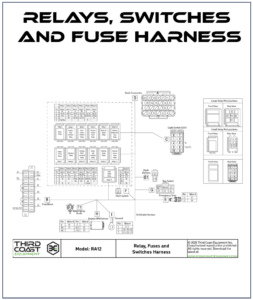

Downloads
