Standard Features:

  • Folding ROPs
  • LED beacon
  • LED working lights
  • Horn
  • Back-up alarm

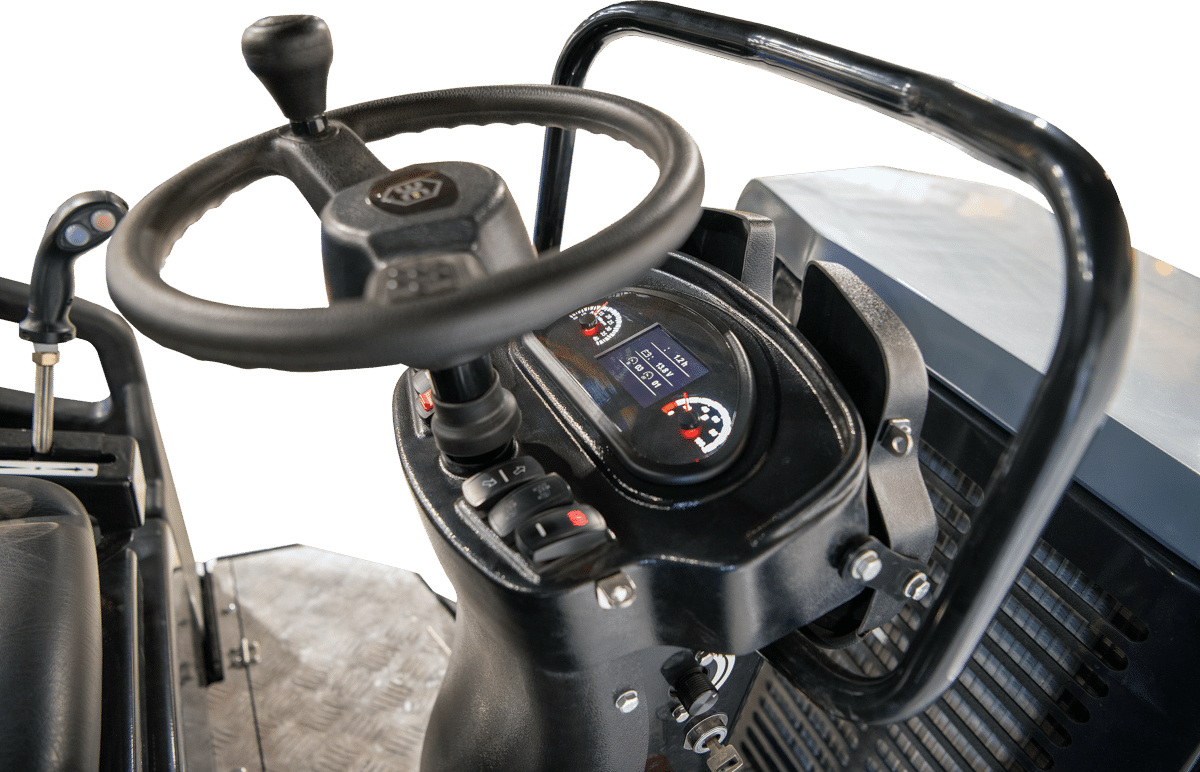

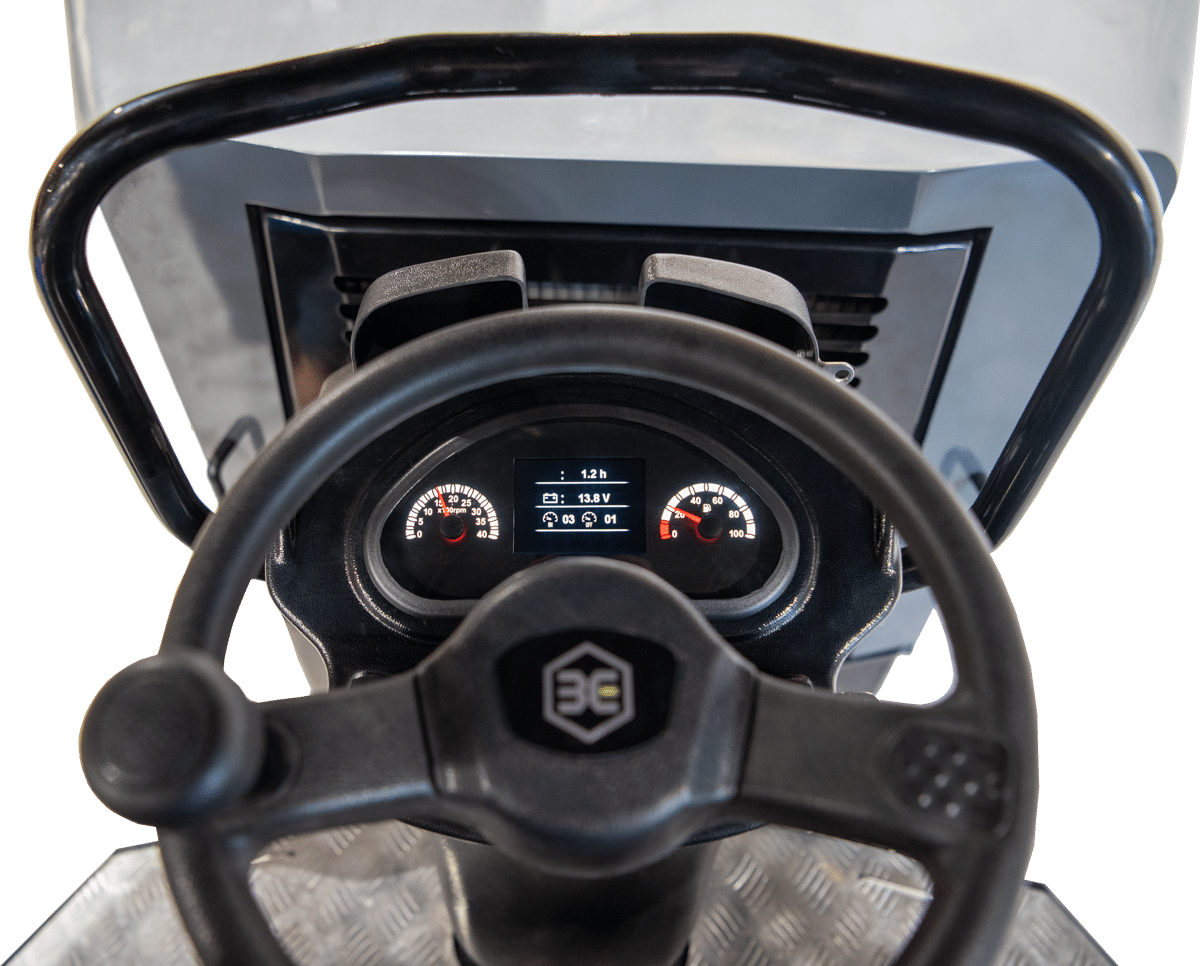

  • Lockable dash cover
  • Pressurized water system
  • Cleanable stainless steel water filter

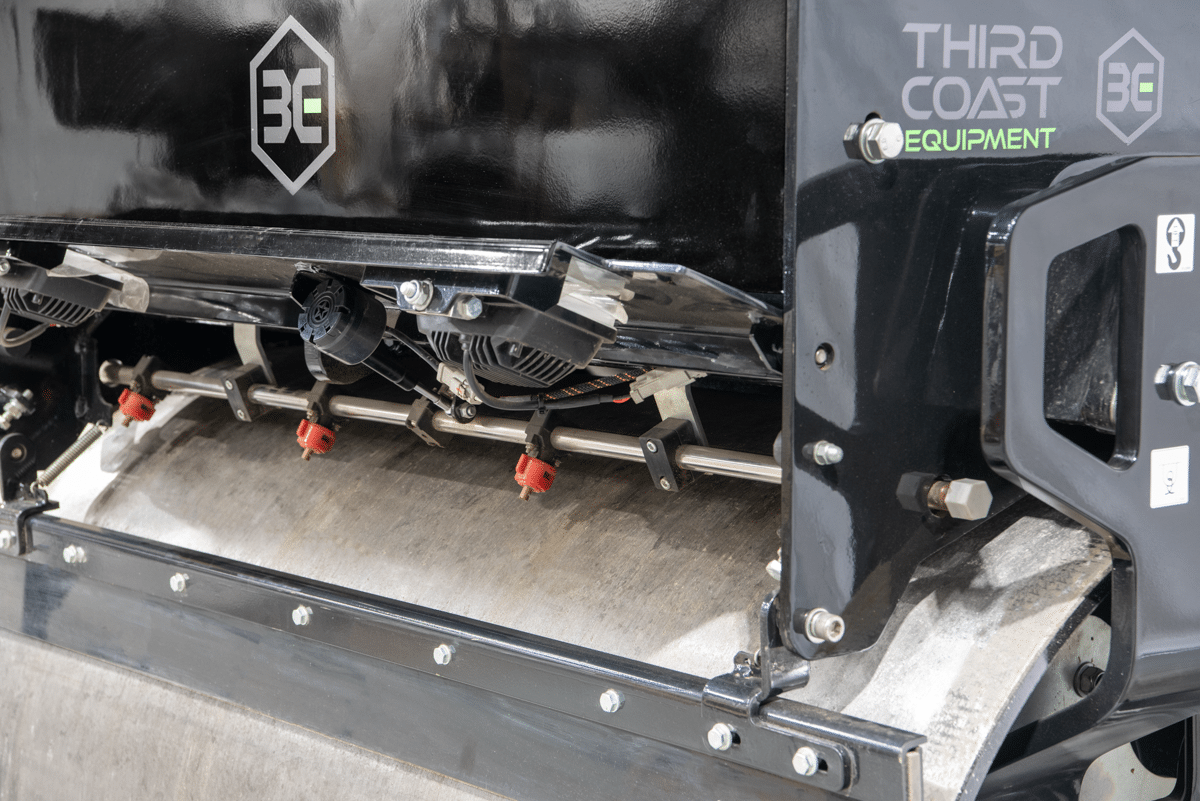

  • Stainless steel water bars with adjustable brass spray nozzles

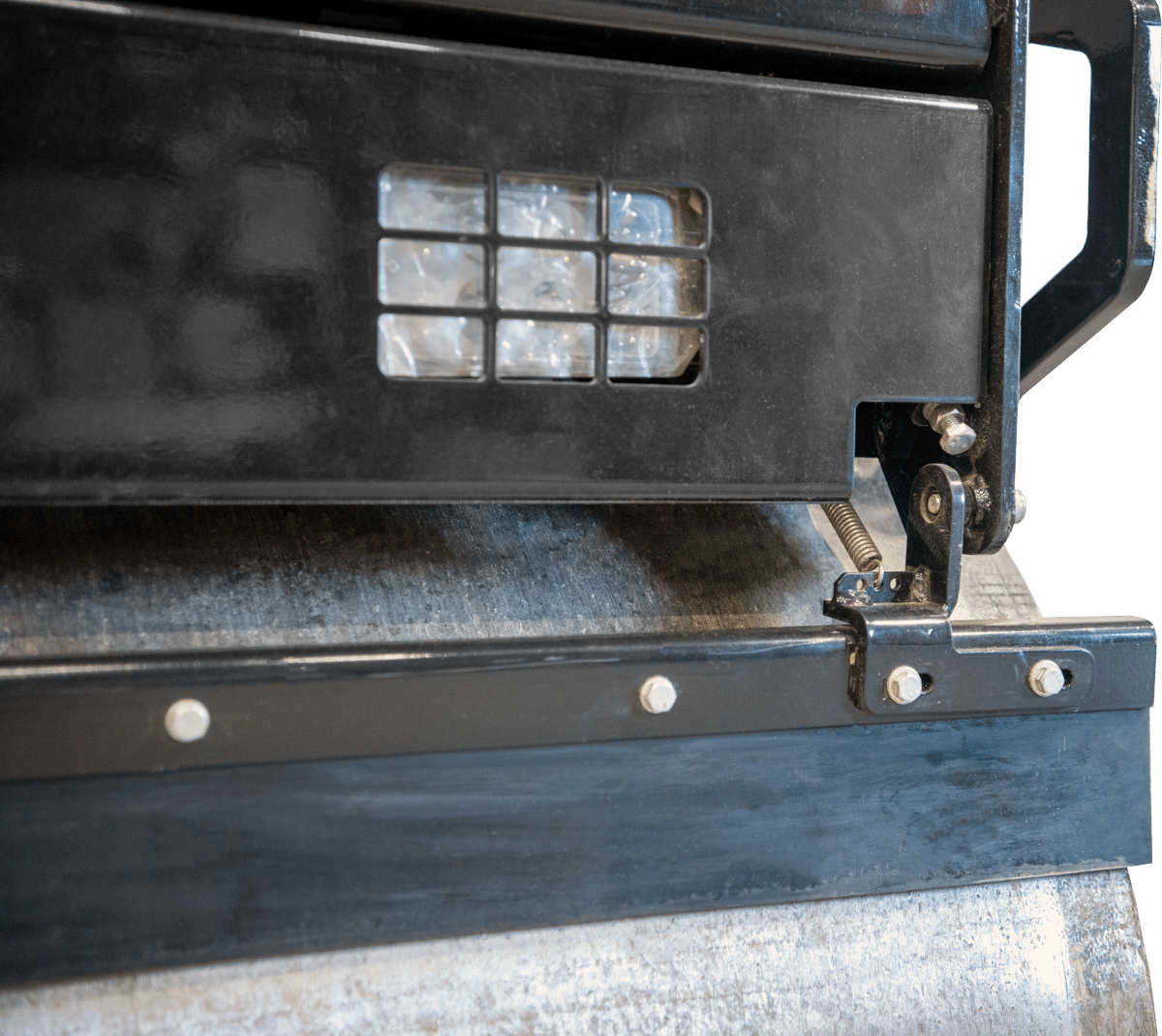

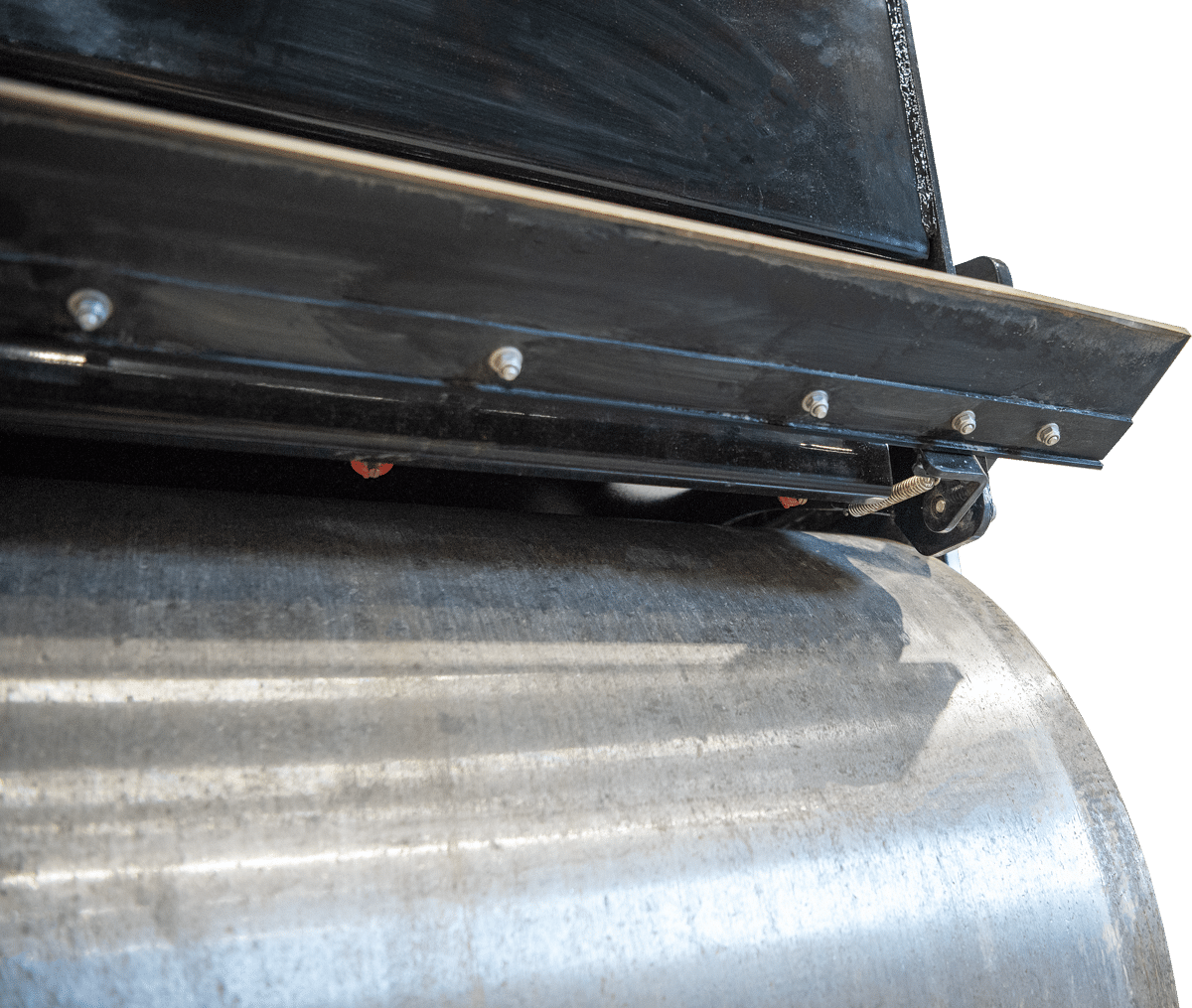

  • Spring loaded, self-adjusting, and flip up scraper bars
  • Yanmar diesel engine
  • Hydraulic oil cooler
  • Sliding and weight adjustable seat


  • Drum edge cutter / roller
  • Canopy
  • Side mirrors


Please Scroll Down To See Technical Specs


Weight & Dimensions
Operating Weight 6115 lb
Overall Width 51.6 in
Overall Length 98.2 in
Overall Height 96.1 in
Curb Clearance (Right) 20.1 in
Curb Clearance (Left) 20.1 in
Turning Radius (Outer) 196.9 in
Performance Data
Vibration Frequency 3600 vpm
Vibration Aplitude 0.02 in
Centrifugal Force High 8540 lbf
Centrifugal Force Low 5170 lbf
Travel Speed with Vibration 6.3 mph
Gradeability Maximum 30%
Water Tank Capacity 52.6 gal
Drum Diameter 27.6 in
Drum Width 47.2 in
Drum Thickness 0.5 in
Engine Manufacturer Yanmar
Engine Model 3TNV88
Cooling Liquid
Number of Cylinders 3
Output Power 43.4 hp
Operating Speed 3000 rpm
Fuel Tank Capacity 15.8 gal

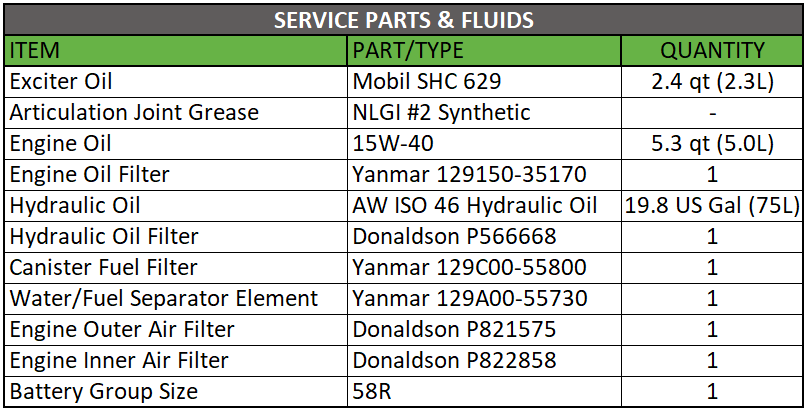

Spare Parts

Coming soon…
